Tuesday, 25 November 2014


Smart materials


A smart material is when heat or electric applied which significantly changes its shape or colour.


Product
What smart material
What does the smart material do?
Properties + characteristics
Mug
Thermo chromic pigment
The smart material changes the colour or theme when it responds to heat, so when hot water is put into the mug, the warmth/humidity makes the mug change red to represent that it’s hot. If cold water is put in, it does the opposite and indicates the mug by showing a blue colour instead.
Changes colour due to heat.
Spoon
Shape memory alloys
Heat treatment gives the material memory of its original shape. When heat is applied to the spoon, it is able to bend the spoon. Once the spoon has been bended, you can get back it’s original shape by putting it under cold water and then straighten it using some force and it will return to it’s original shape.
Changes shape and can retain previous shape.
Warning signs
Phosphorescent pigments
The sign absorb light when it is out and when the lights are turned off, the light will emit after a certain amount of time.
Absorbs light then emits light.
Drawer
Smart grease
Controls the speed of the two materials that need to be required by absorbing the energy.
Control movement.

Tuesday, 18 November 2014


Composite materials

A composite material is more than one material which is combined together to make a property. They are usually different elements; physical and chemical properties that make up the composite material.

Advantages

The advantages of using composite materials is that it is safe because fibres that are used to make the materials have a low electrical conductivity and are efficient fire retardants so that they don’t react as quick.

Composite materials have good strength because it is made up of multiple layers therefore it can withstand more pressure applied. They are made as strong as materials like aluminium and steel. They use a lot of fibres and fillers within each layer so that they reduce the impact done to the material.

Light weight- Composites are weighed less because they are made up of different thin layers. It is said they are 25% less than steel and 30% lighter than aluminium. Light composite are used for vehicles and aeroplanes. The Boeing 787 is a typical example which uses 50% composite materials for the weight of it.

Durable- It is very durable because it is made up from more than one layer that is stacked up upon each other. This is helpful as it makes products that use composite materials last longer.

Particle based composites

Tarmac –properties–used for Bike wheels, Cars wheels and road surfacing.-Characteristics – An Asphalt concrete, made up of multiple layers of minerals and asphalt, broken stone made with tar.

Concretes – properties – Buildings, bridges and paths. Characteristics – A solid material – very versatile – strength, durability and has a good thermal mass (Reduces the heat moving past the concrete.)

Cermets – properties Watches and circular power saw blades. – Cermets can be made out of ceramic and metal material. Characteristics-High temperature resistance and hardness, made out of ceramic and metal materials which are combined together.

Board composites

Hardboard - Used for clipboards, furniture and benches.

Chipboard- Used for flooring, furniture and wardrobes.

Plywood -Used for seats, desks and housing e.g.: Ceiling.

Fibre composites

Natural wood – Used for toilet seats, drawers, for building support.

Elastomers mixed with fibre- Used for grip on shoes, tires, and springs on bicycles

Concretes mixed with fibres- Chair legs, basements and flooring.

How does the structure of plywood give material strength?

Plywood as a high density strength because it is a composite material made up by gluing woods that can be softwoods and hardwoods. The more layers and the more glue applied, the more strength Plywood will have as it will start to become more resistant if lots of different layers are being used.

MDF (Medium Density Fibreboard)

MDF is a wood product which is produced by the breaking down of softwoods and hardwoods into small fibres of wood. It is made up of all types of different fibre board. Sawdust can create MDF as when it is sawdust, it is all combined together with glue and then hardened to gives the physical properties of MDF. MDF can be used for worktops, draws and chairs.

Monday, 6 October 2014




3 pin plug

The 3 pin plug is made out of two materials, plastic and metal. As metals are conductors of heat, which creates electricity, The metal is the 3 gold pins. When this is plugged into the wall and turn on, the current will start to heat up and the pins will start to heat up and as it is connected to the cables, it will give off electricity to use for your lights, game consoles to activate and many other items that need electricity in order for it to work.  Then you have the plastics that are simply used as insulators to contain and circulate the heat. So, for a 3 pin plug, the plastics that are being used is the case of the plug which is a white plastic to hold as much heat in it and the plastic covered around the wire. The purpose is to stop the heat from going where it shouldn't be ending.  Some of the older generations plugs, that were used decades ago, used textile wrapping to insulate the wire.

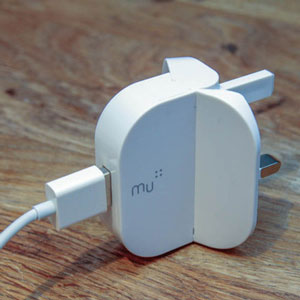

Award Winning 3 pin plug


The reason why this plug is the award winning 3 pinned plug is because of the development he done to it. He thought  that if he made it as thin as possible because it would help other people use the socket in small areas and places where the plug is stored. It's very thin as it can be folded up to an extremely small size and easily taken around. This avoids the plug from being less damaged as it can fit into tight, compact areas. There were also other characteristics of having this fold able 3 pin-plug which were being able to put your USB port where you could charge your phone or laptop using this socket.


Tuesday, 9 September 2014

Assignment 1

Earphones

I bought a pair of Philips earphones from HMV that looked completely normal, in good condition and looked nice. But then they appeared to not be working when I tried music. Only the right earphone was working and the left one wasn't  This then made it quiet and the quality of listening through one earphone was very poor.

There was nothing that I had done to make this happen, saying that, I had only bought these the day before which happened the following day. I had got the earphones out of its case the day after to test them and that’s what had happened, so there was no reason for me to be the blame for this.
I have never bought anything else that has anything to do with Philips, so I blame the company for these earphones.
I would never buy anything else from Philips again as I would not want to risk buying an item of theirs that doesn't work. It just show the lack of effort put into checking whether the earphones work and replacing it with new earphones. If I had bought more products which had been made by Philips, I may have changed my mind as it could have been a one off item that wasn't working and I would have loyalty/trust in them anyway.

Furthermore, I am disappointed with buying these which were £25; it was like the right earphone was dunked into water and then put in the market ready to be sold, as if it would still work thoroughly well. I tried everything to make the earphone work but it just wouldn't happen. This is something I wouldn't want to buy another item from Philips because it may happen again.

However, I did manage to get another from Philips because I had kept the receipt so I got a new one of the same earphones but this one was very quiet. The quality of it was poor and even on max volume it wasn't that clear. I don’t know whether this is coincidence, but this in my opinion, is terrible and I would gladly not want to buy another Philips Earphones again.
